SERENACEL MBR membrane modules

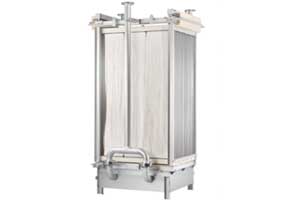

The SERENACEL module consists of a skid made up of several elements containing hollow fiber membranes STERAPORETM 5600-5700 Series. The Ultrafiltration membranes STERAPORE™ 5600-5700 Series are made in PVDF by MITSUBISHI RAYON AQUA SOLUTIONS, for MBR plants and Tertiary Treatments, with flux up to 40 LMH.

Modulo a membrana

COMPONENTS

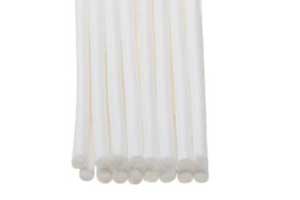

Hollow fiber membrane

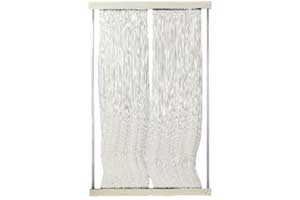

The membranes are grouped in elements each of 5 or 40 m2

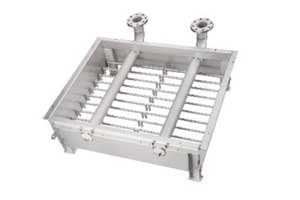

Air diffusers inside Stainless steel AISI304 or module in Stainless Steel AISI304 or AISI316

Air diffusers inside Stainless steel AISI304 or module in Stainless Steel AISI304 or AISI316

Download "Serenacel Mitsubishi" in PDF format

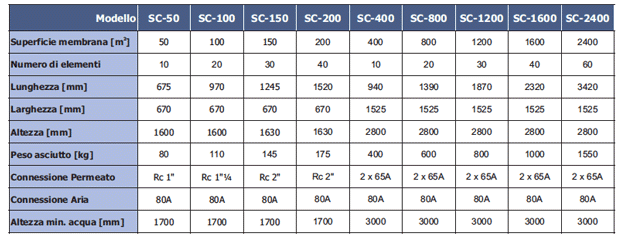

SERENACEL MODULE SPECIFICATIONS

SERENACEL MODULE SPECIFICATIONS

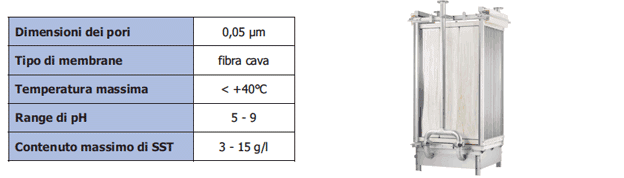

GENERAL FEATURES

GENERAL FEATURES

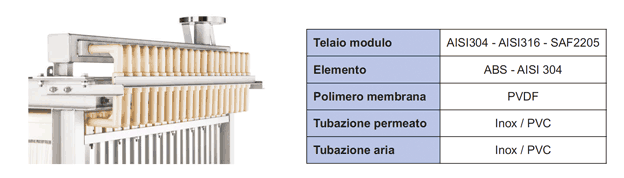

MATERIALS

MATERIALS

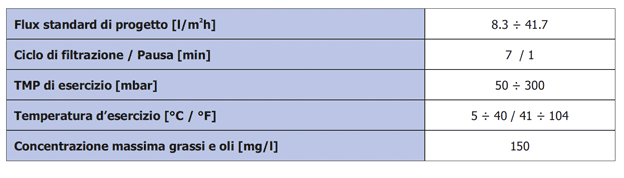

DESIGN AND OPERATE PARAMETERS

DESIGN AND OPERATE PARAMETERS
